Viewbox Installation Specifications

PerfectView offers a variety of x-ray illuminators with options that will suit the needs of any imaging professional - radiologist, veterinarian, or orthopedist.

Features	2000 Series	3000 Series	4000 Series
15 watt daylight fluorescent bulbs (vertically mounted)	Two	Three	Four
Amps per viewing area (14" x 17")	.75	1.2	1.2
Instant start ballast	x	x	x
Special light diffusing system	x	x	x
Individual on/off switches for each viewing area	x	x	x
Completely recessible	x	x	x
Positive film grip (self adjusting)	x	x	x
Thinline design	x	x	x
110V power supply required	x	x	x
UL/CUL Approved	x	x	x
Film-activated micro-switch	Optional	Optional	Optional
Hospital-grade plug	Optional	Optional	Optional
15- or 30-degree angle brackets (for two-tier units)	Optional	Optional	Optional
Master switch	Optional	Optional	Optional

All PerfectView Illuminators are equipped with the following features:

All viewboxes constructed from 20-gauge cold rolled steel
High-Lustre white baked powder paint finish (non-yellowing), inside and out
All illuminators available in surface or recessed styles
Classic styling and neutral color blends with any décor
Shatterproof Plexiglas^® viewing panel is one-eighth inch (3.2 mm) thick
Viewing panel is quickly and easily removed, without tools, for direct access to bulbs
Specially engineered reflectors and light diffusing system provide uniform light distribution
Self-adjusting gravity film grips on all models
Trigger-start ballast
Cluster switches as a standard feature
All steel Uni-body construction

Installation Specifications

Important: Recessed Unit Opening Specifications

Click the names below to view drawings in Adobe Acrobat format. Click here to obtain this free software.

Download Installation Specification Drawings below:
Style	Wallmount	Recessed
1 in 1	1 tier 1 bank (PV2001)	1 tier 1 bank (PV2001R)
2 in 1	1 tier 2 bank (PV2002)	1 tier 2 bank (PV2002R)
3 in 1	1 tier 3 bank (PV2003)	1 tier 3 bank (PV2003R)
4 in 1	1 tier 4 bank (PV2004)	1 tier 4 bank (PV2004R)
5 in 1	1 tier 5 bank (PV2005)	1 tier 5 bank (PV2005R)
6 in 1	1 tier 6 bank (PV2006)	1 tier 6 bank (PV2006R)

1 over 1	2 tier 1 bank (PV2011)	2 tier 1 bank (PV2011R)

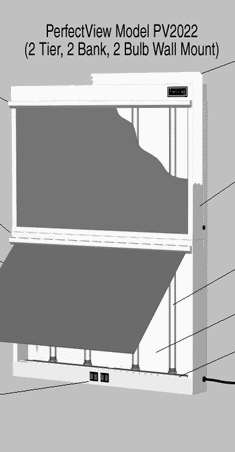

2 over 2	2 tier 2 bank (PV2022)	2 tier 2 bank (PV2022R)
3 over 3	2 tier 3 bank (PV2033)	2 tier 3 bank (PV2033R)
4 over 4	2 tier 4 bank (PV2044)	2 tier 4 bank (PV2044R)
5 over 5	2 tier 5 bank (PV2055)	2 tier 5 bank (PV2055R)
6 over 6	2 tier 6 bank (PV2066)	2 tier 6 bank (PV2066R)

Angle Units	2 Tier - 15 & 30 Degree Units

Orthopedic	PV1436 PV2836 PV1451	PV1436R PV2836R
